Atlanta Division
A&WP-WofA Subdivision
(Atlanta, GA to Montgomery, AL)
|
A&WP-WofA Subdivision-AW

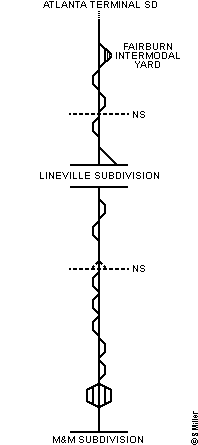

Station List and Diagram
This information comes from the 'CSX Transportation Atlanta Division Timetable No. 1', effective Friday, October 1, 1999.
|
|
Radio: AE Dispatcher channel 58, Road channel 84 |
|
157.6 Miles · Stonewall to Montgomery |
| â SOUTH â |
MP |
Station |
Siding |
Notes |
 |
XXB16.4 |
Stonewall |
|
End Atlanta Terminal SD
Begin A&WP-WofA SD |
| XXB20.0 |
Fairburn |
12400' |
Fairburn Intermodal Yard |
| XXB25.3 |
Palmetto |
9955' |
|
| XXB39.2 |
Newnan |
6215' |
Jct NS |
| XXB57.3 |
Hogansville |
6500' |
|
| XXB68.7 |
Dobbs |
|
Jct LaGrange Connection Track |
| XXB69.1 |
LaFayette Connection |
|
NEDT, Jct Lineville SD |
| XXB71.2 |
Main St Connection |
|
SEDT, Jct Lineville SD |
| XXB86.0 |
West Point |
4840' |
|
| XXB98.4 |
Cusseta |
2695' |
|
| XXB107.3 |
Roanoke Junction |
|
Jct NS |
| XXB109.7 |
Opelika |
6600' |
Jct NS |
| XXB129.0 |
Notasulga |
2800' |
|
| XXB135.6 |
Chehaw |
3520' |
|
| XXB147.5 |
Milstead |
4125' |
|
XXB160.9 |
Mount Meigs |
9955' |
|
| XXB174.0 |
Chester |
Yard |
|
| XXB175.5 |
Coosa Street |
|
End A&WP-WofA SD
Jct M&M SD |
| Additional Stations |
|---|
| MP |
Station |
Capacity |
Switch |
Notes |
| XXB151.8 |
Shorters |
18 |
Both |
|
| |
| Authority for Movement |
|---|
| Between Location/Mile Post |
Rules |
| XXB16.4 and XXB25.6 |
265-274 |
| XXB25.6 and XXB68.7 |
120-132 (243-246) |
| XXB68.7 and XXB69.1 |
265-247 |
| XXB71.2 and XXB171.8 |
120-132 (243-246) |
| XXB171.8 and XXB175.3 |
93 |
| |
DTC Block Limits
Between Fairburn and Montgomery |
|---|
| Between Location/Mile Post |
Block Names |
| XXB18.1 and XXB23.5 |
Fairburn |
| XXB25.6 and XXB37.7 |
Palmetto |
| XXB37.7 and XXB39.9 |
Newnan |
| XXB39.9 and XXB57.4 |
Grantville |
| XXB57.4 and XXB68.7 |
Hogansville |
| XXB71.2 and XXB75.4 |
Dow |
| XXB75.4 and XXB87.0 |
Gabbetsville |
| XXB87.0 and XXB98.2 |
West Point |
| XXB98.2 and XXB109.8 |
Roanoke |
| XXB109.8 and XXB128.9 |
Opelika |
| XXB128.9 and XXB135.6 |
Notasulga |
| XXB135.6 and XXB146.9 |
Chehaw |
| XXB146.9 and XXB158.6 |
Milstead |
| XXB158.6 and XXB171.8 |
Mount Meigs |
| |
| Maximum Authorized Speed |
|---|
| Between Location/Mile Post |
MPH |
| XXB16.4 and XXB175.3 |
60 |
| |
| Defect Detectors |
|---|
| MP |
Location |
Type |
Indicators |
| XXB37.6 |
Newnan |
|
Voice Instructions |
| XXB57.1 |
Hogansville |
|
Voice Instructions |
| XXB73.8 |
La Grange |
|
Voice Instructions |
| XXB94.0 |
Nelson |
|
Voice Instructions |
| XXB114.1 |
Opelika |
|
Voice Instructions |
| XXB134.0 |
Chehaw |
|
Voice Instructions |
| XXB152.8 |
Shorters |
|
Voice Instructions |
| |
| Railroad Crossings at Grade |
|---|
| MP |
Location |
Railroad |
Protection |
| |
Newnan |
NS |
Electrically locked Derails |
| |
Opelika |
NS |
Automatic |
| XXB174.5 |
Montgomery |
CSX |
Gate |
|
