Detroit Division
Toledo Terminal Subdivision
(Toledo, OH)
SIGNAL LIST
Toledo Terminal Subdivision-TT

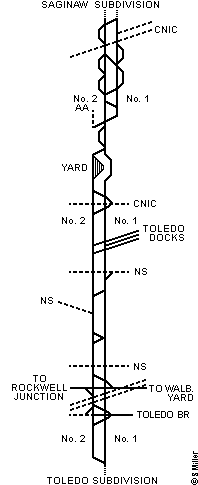

Station List and Diagram
This information comes from the 'CSX Transportation Detroit Division Timetable No. 1', effective Saturday, July 1, 2000.
Radio:  AX Dispatcher channel 84,  Road channel 08
42.1 Miles  ·  Carleton to Perry
â SOUTH â MP Station Siding Notes
CC104.7 Carleton NS5629'
SS4380'		 End Saginaw SD
Begin Toledo Terminal SD
Junction CNIC, Junction Conrail
CC115.2 Monroe NS2360'
SS3059'
CC125.2 Erie
CCA130.1 Alexis 2000' SEDT
CCA131.9 Hallett   NEDT
CTT1.0 Boulevard
CTT0.4 CNIC Crossing   Jct CNIC
CTT27.7 Lower Bridge
CTT26.5 Millard Avenue
CTT26.3 Ironville   Jct NS
CTT25.4 Consaul Street
CTT24.1 Starr Avenue   Jct NS
CTT23.0 Pickle Road
CTT21.9 Vickers   Jct NS
CTT20.6 WR Tower   To Columbus SD
CTT19.5 Stanley   To Toledo Branch SD
CTT16.4 Bates
BE193.6 Perry   End Toledo Terminal SD
SEDT, Begin Toledo SD
4.0 Miles  ·  Turnpike to WR Tower
â NORTH â MP Station Siding Notes
CDA114.4 Turnpike   Begin Columbus SD
End Toledo Terminal SD
CDA117.8 Walbridge
CDA118.4 WR Tower
3.0 Miles  ·  Hallett to NS Connection
â NORTH â MP Station Siding Notes
CTT2.0 Hallett
CTT3.1 Tower K
CTT4.6 Temperance
CTT5.0 NS Connection
Authority for Movement
Alexis to Perry
Between Location/Mile Post Rules
CCA104.7 and CCA105.5 CNIC Crossing 265-272
CCA105.5 and CCA125.2 D-251
CCA125.2 and CCA130.1 265-272
CCA130.1 Alexis and CCA130.4 255-259
CCA130.4 and CCA131.9 265-272
CCA131.9 Hallett and CCA132.3 (CTT1.8) 255-259
CCA132.3 (CTT1.8) and CTT0.3 D-251
CTT0.3 CNIC Crossing and CTT0.2 255-259
CTT0.2 and CTT27.9 D-251
CTT27.9 Lower Bridge and CTT27.7 265-272
CTT27.7 and CTT26.7 D-251
CTT26.7 Millard Avenue and CTT26.5 265-271
CTT26.5 Ironville and CTT26.4 255-259
No. 2 Track: CTT26.4 and CTT25.5 D-251
No. 1 Track: CTT26.4 and CTT25.5 265-272
CTT25.5 Consaul Street and CTT25.4 255-259
CTT25.4 and CTT23.0 D-251
CTT23.0 Pickle Road and CTT22.9 255-259
CTT22.9 and CTT22.0 D-251
CTT22.0 Vickers and CTT21.9 255-259
CTT21.9 and CTT20.8 D-251
CTT20.8 WR Tower and CTT19.2 255-259
CTT19.2 and BE193.6 265-272
VR Tower to Rockwell Junction
CDA114.4 Turnpike and CDA117.9 CSX Crossing 265-272
CDA117.9 CSX Crossing and CDA118.4 255-259
Hallett to Bates
CTT2.0 Hallett and CTT3.0 Tower K 120-132
CTT3.0 Tower K and CTT3.1 255-259
CTT3.1 and CTT5.0 NS Connection 120-132
Note: CSX trains will use the tracks of other railroads in accordance with their timetables, rules and regulations as follows
Walbridge to Rockwell Junction and Alexis, Toledo NS
Front Street, Homestead Yard and Sumner Street Yard to Gould NS
CTT5.0 Temperance and CTT12.7 Gould NS
Hallett and Galena Streets, Toledo AA
Lang Yard CNIC
WR Tower and Alexis, Toledo NS
DTC Block Limits
Between Carleton and Perry
Between Location/Mile Post Block Names
CCA105.4 NAS Carleton and
CCA114.3 North crossover switch Monroe		 Monroe
CCA114.3 North crossover switch Monroe and
CCA125.2 crossover switch Erie		 Erie
CTT1.8 NAS Hallett and CTT0.3 SAS CNIC Crossing Hoff
CTT0.2 NAS CNIC Crossing and CTT27.9 SAS Lower Bridge Suder
CTT27.7 NAS Lower Bridge and CTT26.7 SAS MI Cabin Front
No. 2 Track: CTT26.4 NAS Ironville and CTT25.5 SAS Consaul York
CTT25.4 NAS Consaul and CTT23.0 SAS Pickle Street Oil
CTT22.9 NAS Pickle Street and CTT22.0 SAS Vickers Oakdale
CTT21.9 NAS Vickers and CTT20.8 SAS WR Tower Wales
Between Hallett and NS Connection
CTT2.0 SAS Hallett and CTT3.0 NAS Tower K Side
CTT3.1 SAS Tower K and CTT5.0 Temper
Maximum Authorized Speed
Between Location/Mile Post MPH
CC104.7 and Alexis 45
Alexis and Walbridge 30
Stanley and Perry 30
CDA117.9 CSX Crossing and CDA114.4 Turnpike 30
CTT2.0 Hallett and CTT5.0 NS connection 10
Entire Subdivision trains in excess of 7000 tons 35
Defect Detectors
MP Location Type Indicators
CC122.4 Erie
Railroad Crossings at Grade
Alexis to Perry
MP Location Railroad Protection
CC105.0 Carleton CNIC Remote
  Alexis NS Remote
  Hallett AA Remote
  CNIC Crossing CNIC Remote
  Ironville NS Remote
  Vickers NS Remote
  WR Tower CSX Remote
  Stanley CSX Remote
Turnpike to WR Tower
  Walbridge CSX Remote
Hallett to CTT5
  Tower K NS Remote
  Mather Lead NS Signs
