Great Lakes Division
New Castle Subdivision
(New Castle, PA to Willard, OH)
SIGNAL LIST
New Castle Subdivision-AK

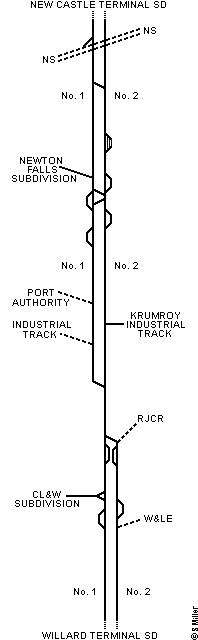

Station List and Diagram
This information comes from the 'CSX Transportation Great Lakes Division Timetable No. 2', effective Sunday, October 1, 2000.
Radio:  IO Dispatcher channel 14,  Road channel 08,  Akron Jct channel 28
134.5 Miles  ·  New Castle Terminal to Boyd
â WEST â MP Station Siding Notes
BG58.4   X-over End New Castle Terminal SD
Begin New Castle SD
BG73.9 Haselton   Jct NS
BG76.4 Youngstown
BG77.7 Yanda
BG87.7 Niles Junction
BG91.2 Lordstown Yard
BG91.9 Rock Cut
BG95.9 Newton Falls ES6678'
WS10050'		 Jct Newton Falls SD

BG103.9 FS Tower ES6658'
BG110.6 Ravenna
BG117.6 Kent
BG124.9 XN Tower
BG127.5 BD Tower   Jct Krumroy Industrial Track
  Akron Junction
BG128.3 Akron
BG134.7 Lambert   WEDT
BG137.3 Barberton
BG143.8 Warwick ES6500'
WS8299'		 EEDT
BG152.0 Rittman
BG155.5 Sterling ES7089'
WS6959'		 Jct CL&W SD

BG165.6 Lodi
BG176.8 Sullivan
BG181.1 Nova
BG192.5 Boyd   End New Castle SD
Begin Willard Terminal SD
Authority for Movement
Between Location/Mile Post Rules
BG58.4 and BG73.5 D-251
BG73.5 and BG77.8 265-272
BG77.8 and BG95.9 D-251
BG95.9 Newton Falls and BG96.0 255-259
BG96.0 No. 1 Track Newton Falls and
BG103.9 WAS FS Tower		 D-251
BG96.0 No. 2 Track Newton Falls and
BG102.5 WAS east end East Siding FS Tower		 D-251
BG103.9 No. 1 Track WAS FS Tower and
BG105.3 EAS west end West Siding FS Tower		 265-272
BG102.5 No. 2 Track WAS east end East Siding FS Tower and
BG103.9 EAS FS Tower		 265-272
BG105.3 No. 1 Track WAS west end West Siding FS Tower and BG127.5 D-251
BG103.9 No. 2 Track EAS FS Tower and BG127.5 D-251
BG127.5 and BG144.0 EEDT Warwick 265-272
BG144.0 No. 1 Track EEDT Warwick and
BG146.6 west switch scale track Warwick		 265-272
BG144.0 No. 2 Track EEDT Warwick and
BG145.5 west end East Siding Warwick		 265-272
BG146.6 No. 1 Track west switch scale track and
BG155.5 Sterling		 D-251
BG145.5 No. 2 Track west end East Siding Warwick and
BG155.5 Sterling		 D-251
BG155.5 and BG155.8 Sterling 255-259
BG155.8 and BG192.5 D-251
Note: Rules 265-272 are in effect on passing sidings FS Tower.
Maximum Authorized Speed
Between Location/Mile Post MPH
BG58.4 and BG143.6 55
BG143.6 and BG192.5 60
Defect Detectors
MP Location Type Indicators
BG62.6 Edinburg
BG81.3 Liberty Street
BG102.0 Apco   Voice Instructions
BG121.9 Munroe Falls   Voice Instructions
BG148.0 Easton   Voice Instructions
BG169.2 Pawnee   Voice Instructions
BG188.5 Ramey
Railroad Crossings at Grade
MP Location Railroad Protection
BG73.5 Center Street Haselton NS Remote
BG192.6 Boyd CSX Remote
