Jacksonville Division
Fitzgerald Subdivision
(Manchester, GA to Waycross, GA)
|
Fitzgerald Subdivision-FZ

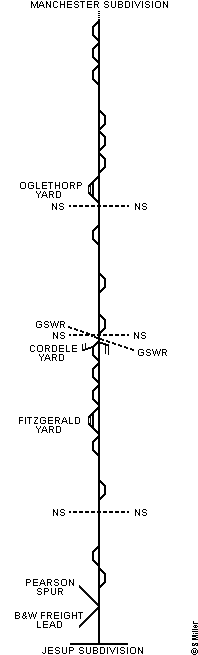

Station List and Diagram
This information comes from the 'CSX Transportation Jacksonville Service Lane Timetable No. 2', effective Thursday, July 1, 1999.
|
|
Radio: JD Dispatcher channel 20, Road channel 32 |
|
201.6 Miles · Manchester to Waycross |
| â SOUTH â |
MP |
Station |
Siding |
Notes |
 |
ANB786.7 |
Manchester |
7305' |
End Manchester SD
Begin Fitzgerald SD |
| ANB781.1 |
Woodland |
10361' |
|
| ANB770.3 |
Talbotton |
6314' |
|
| ANB762.1 |
Junction City |
|
|
| ANB760.2 |
Brownsand |
10419' |
|
| ANB745.9 |
Rupert |
8096' |
|
| ANB736.6 |
Ideal |
11223' |
|
| ANB728.2 |
Oglethorpe |
4898' |
Jct NS |
| ANB726.3 |
Montezuma |
|
|
| ANB717.5 |
Dooling |
10744' |
|
| ANB715.3 |
Byromville |
|
|
| ANB710.0 |
Lilly |
6176' |
|
| ANB704.5 |
Vienna |
|
|
| ANB697.7 |
Ross |
14485' |
|
| ANB694.7 |
Cordele |
9959' |
Jct NS, Jct GSWR |
| ANB683.1 |
Hatley |
11239' |
|
| ANB672.8 |
Rebecca |
9524' |
|
| ANB659.7 |
Fitzgerald |
8930' |
|
| ANB649.8 |
Osierfield |
7592' |
|
| ANB640.7 |
Ambrose |
|
|
| ANB632.0 |
Upton |
7663' |
|
| ANB629.2 |
Douglas |
|
Jct NS |
| ANB619.7 |
Saginaw |
10080' |
|
| ANB613.0 |
Sessoms |
7899' |
|
| ANB602.5 |
Bolen |
10781' |
|
| ANB587.9 |
Lang |
|
|
| ANB586.7 |
Waycross |
|
End Fitzgerald SD
Jct Jesup SD |
| Additional Stations |
|---|
| MP |
Station |
Capacity |
Switch |
Notes |
| SLA657.4 |
Ocilla Spur |
-- |
North |
|
| ANB722.7 |
Fields |
3 |
South |
|
| ANB754.7 |
Mauk Storage |
48 |
Both |
|
| |
| Authority for Movement |
|---|
| Between Location/Mile Post |
Rules |
| ANB586.7 and ANB786.7 |
265-272 |
| AP587.8 and AP/ANB589.0 (B&W Freight Lead) |
265-272 |
| SLA658.0 and SLA660.7 (Ocilla Spur) |
S-146 |
| AP617.9 and AP/ANB589.0 (Pearson Spur) |
S-146 |
| Note: Rules 265-272 are in effect on Woodland, Brownsand, Rupert,Ideal, Dooling, Ross, Hatley, Rebecca, Saginaw and Bolen signaled sidings. |
| |
| Maximum Authorized Speed |
|---|
| Between Location/Mile Post |
MPH |
| ANB786.7 and ANB590.0 |
60 |
| ANB590.0 and ANB588.2 |
30 |
| ANB588.2 and ANB586.7 |
15 |
| AP617.9 and AP589.0 (Pearson Spur) |
10 |
| SLA657.9 and SLA663.3 (Ocilla Spur) |
10 |
| |
| Defect Detectors |
|---|
| MP |
Location |
Type |
Indicators |
| ANB783.0 |
Woodland |
AD |
Voice Instruction |
| ANB762.7 |
Junction City |
AD |
West side |
| ANB740.8 |
Ideal |
AD |
West side |
| ANB722.5 |
Montezuma |
AD |
Voice Instruction |
| ANB700.7 |
Ross |
AD |
West side |
| ANB681.7 |
Hatley |
AD |
Voice Instruction |
| ANB662.1 |
Fitzgerald |
AD |
West side |
| ANB641.7 |
Ambrose |
AD |
West side |
| ANB621.4 |
Saginaw |
AD |
Voice Instruction |
| ANB601.0 |
Bolen |
AD |
Voice Instruction |
| |
| Railroad Crossings at Grade |
|---|
| MP |
Location |
Railroad |
Protection |
| ANB727.7 |
Oglethorpe |
NS |
Automatic |
| ANB694.9 |
Cordele |
NS/GSWR |
Automatic |
|
