Appalachian Division
EK Subdivision
(Winchester, KY to Deane, KY)
|
EK Subdivision-EK

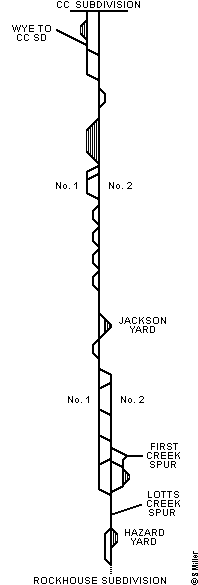

Station List and Diagram
This information comes from the 'CSX Transportation Appalachian Division Timetable No. 1', effective Saturday, January 1, 2000.
|
|
Radio: BK Dispatcher channel 94, Road channel 84 |
|
117.5 Miles · Patio to BG |
| â SOUTH â |
MP |
Station |
Siding |
Notes |
 |
KC97.2
WI207.2 |
Patio |
4528' |
Jct CC SD
Begin EK SD |
| WI208.1 |
Strick |
3895' |
Wye to CC SD |
| WI209.0 |
Waller |
9636' |
|
| WI222.1 |
Sloan |
10048' |
|
| WI232.5 |
Irvine |
|
|
| VB144.3 |
Ravenna |
Yard |
|
| VB145.1 |
Wagers |
|
NEDT |
| VB150.1 |
Pryse |
|
SEDT, Weigh In Motion Scales |
| VB158.1 |
Evelyn |
10014' |
|
| VB170.3 |
Heidelberg |
6907' |
|
| VB178.1 |
Beattyville |
10081' |
|
| VB187.3 |
Athol |
8638' |
|
| VB191.7 |
Yeadon |
|
|
| VB199.2 |
Jackson |
8221' |
|
| VB210.5 |
Copland |
10128' |
|
| VB224.8 |
Perritt |
| NEDT |
| VB227.2 |
Krypton |
X-over |
|
| VB230.3 |
Grimes |
X-over |
|
| VB234.3 |
Rose |
X-over |
|
| VB237.1 |
Typo |
X-over |
Jct First Creek Spur |
| VB239.2 |
Crawford Yard |
|
SEDT |
| VB240.4 |
Combs |
|
Jct Lotts Creek Branch |
| VB241.5 |
North Hazard |
Yard |
|
| VB243.2 |
BG |
|
End EK SD
Begin Rockhouse SD |
| Authority for Movement |
|---|
| Between Location/Mile Post |
Rules |
| WI207.2 Patio and VB241.5 North Hazard |
265-272 |
| VB241.5 North Hazard and VB243.2 |
93 |
| Lotts Creek Branch |
|---|
| WV242.0 and WV244.9 (New Main Hazard) |
93 |
| WV242.0 and WV244.9 |
120-132 |
| WK236.8 and WK237.2 (First Creek Wye) |
93 |
| WK237.2 and WK241.8 (First Crek Spur) |
S-146 |
| Note: First Creek Spur's north leg of Wye connects to No. 2 Track near VB236.8. |
| |
DTC Block Limits
Lotts Creek Branch |
|---|
| Between Location/Mile Post |
Block Names |
| VB242.0 and WV244.9 |
Wabaco |
| |
| Maximum Authorized Speed |
|---|
| Between Location/Mile Post |
MPH |
| Patio and VB243.2 |
35 |
| First Creek Spur |
10 |
| Lotts Creek Branch |
10 |
| Jakes Branch |
10 |
| Danger Fork Branch |
10 |
| |
| Defect Detectors |
|---|
| MP |
Location |
Type |
Indicators |
| WI210.7 |
Rakers |
AD |
West side |
| WI227.2 |
Calla |
AD |
West side |
| VB153.7 |
Old Landing |
AD |
East side |
| VB179.1 |
St Helens |
AD |
East side |
| VB195.6 |
Gentry |
AD |
West side |
| VB216.3 |
Wolfcoal |
AD |
East side |
|
