Atlanta Division
Abbeville Subdivision
(Abbeville, SC to Atlanta, GA)
|
Abbeville Subdivision-AV

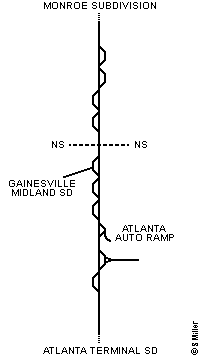

Station List and Diagram
This information comes from the 'CSX Transportation Atlanta Division Timetable No. 1', effective Friday, October 1, 1999.
|
|
Radio: AB Dispatcher channel 12, Road channel 66 |
|
119.0 Miles · Abbeville to Tucker |
| â SOUTH â |
MP |
Station |
Siding |
Notes |
 |
SG442.0 |
Abbeville |
|
End Monroe SD
Begin Abbeville SD |
| SG454.1 |
Calhoun Falls |
9950' |
|
| SG468.5 |
Norman |
9950' |
|
| SG486.5 |
Howie |
9953' |
|
| SG498.3 |
Hull |
9971' |
|
| SG505.7 |
Athens |
|
Jct NS |
| SG507.8 |
Fowler Junction |
9815' |
Jct Gainesville Midland SD |
| SG521.6 |
Harper |
10018' |
|
| SG532.7 |
Auburn |
9968' |
|
| SG538.0 |
Dacula |
|
Atlanta Auto Ramp |
| SG544.1 |
Lawrenceville |
9726' |
|
| SG549.6 |
Gloster |
7975' |
|
| SG559.0 |
Tucker Holdout |
|
|
| SG561.0 |
Tucker |
|
End Abbeville SD
Begin Atlanta Terminal SD |
| Additional Stations |
|---|
| MP |
Station |
Capacity |
Switch |
Notes |
| SG472.0 |
Elberton |
Yard |
Both |
|
| SG472.45 |
Elberton |
xing |
|
Brewers Bridge Rd |
| SG472.76 |
Elberton |
Jct |
North |
Hartwell RR |
| SG474.0 |
Webster |
40 |
Both |
|
| SG494.0 |
Colbert |
10 |
South |
|
| SG512.0 |
Cleveland Road |
4 |
South |
|
| SG515.0 |
Bogart |
55 |
Both |
|
| SG527.0 |
Winder |
Yard |
Both |
|
| SG555.0 |
Lilburn |
15 |
North |
|
| |
| Authority for Movement |
|---|
| Between Location/Mile Post |
Rules |
| SG442.0 and SG561.0 |
265-274 |
| Note: Rules 265-274 are in effect on the following signaled sidings: Calhoun Falls, Norman, Howie, Hull, Harper, Auburn, Dacula, Lawrenceville and Gloster. |
| |
| Maximum Authorized Speed |
|---|
| Between Location/Mile Post |
MPH |
| SG442.0 and SG561.0 |
60 |
| |
| Defect Detectors |
|---|
| MP |
Location |
Type |
Indicators |
| SG442.8 |
Abbeville |
|
Voice Instructions |
| SG462.6 |
Heardmont |
|
Voice Instructions |
| SG484.6 |
Howie |
|
Voice Instructions |
| SG509.9 |
Athens |
|
Voice Instructions |
| SG530.0 |
Winder |
|
Voice Instructions |
| SG552.4 |
Lilburn |
|
Voice Instructions |
| |
| Railroad Crossings at Grade |
|---|
| MP |
Location |
Railroad |
Protection |
| SG505.5 |
Athens |
NS |
Electrically locked Derails |
|
