Atlanta Division
W&A Subdivision
(Wauhatchie, TN to Elizabeth, GA)
|
W&A Subdivision-WA

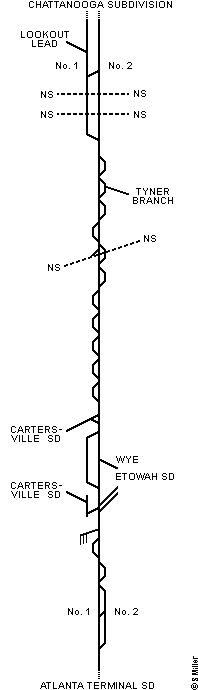

Station List and Diagram
This information comes from the 'CSX Transportation Atlanta Division Timetable No. 1', effective Friday, October 1, 1999.
|
|
Radio: AI Dispatcher channel 94, Road channel 84 |
|
123.3 Miles · Wauhatchie to North Elizabeth |
| â SOUTH â |
MP |
Station |
Siding |
Notes |
 |
J145.7 |
Wauhatchie |
|
End Chattanooga SD
Begin W&A SD |
| J147.0 |
Lookout |
|
|
| J149.0 |
Alton Park |
X-over |
|
| J149.4 |
Wheland |
|
Jct NS |
| WA135.9 |
CT Tower |
|
Jct NS |
| WA135.6 |
East End Ave |
|
SEDT |
| WA131.2 |
Boyce |
4070' |
|
| WA128.7 |
Tyner |
2000' |
Jct Tyner Branch |
| WA120.1 |
Graysville |
6435' |
|
| WA106.7 |
Tunnel Hill |
6380' |
|
| WA98.7 |
Dalton |
4125' |
Jct NS |
| WA89.6 |
Tilton |
3135' |
|
| WA83.8 |
Resaca |
9405' |
|
| WA74.7 |
McDaniels |
3795' |
|
| WA68.0 |
Adairsville |
3080' |
|
| WA63.1 |
Halls |
3640' |
|
| WA57.8 |
Kingston |
5665' |
|
| WA50.1 |
Bowen |
|
Jct Cartersville SD |
| WA49.0 |
North Junta |
|
NEDT |
| WA48.6 |
W&A Wye |
|
|
| WA48.1 |
Junta |
3905' |
SEDT, Jct Cartersville SD
Jct Etowah SD |
| WA47.6 |
Cartersville |
|
|
| WA43.1 |
Emerson |
7975' |
|
| WA34.1 |
Acworth |
6710' |
|
| WA30.9 |
Moon |
|
NEDT |
| WA28.3 |
Kennesaw |
X-over |
|
| WA25.9 |
Day |
|
SEDT |
| WA22.4 |
North Elizabeth |
|
End W&A SD
Begin Atlanta Terminal SD |
| Authority for Movement |
|---|
| Between Location/Mile Post |
Rules |
| J145.7 and WA22.4 |
265-274 |
| TY126.1 and TY128.8 (Tyner Spur) |
S-146 |
| Note: Rules 265-274 are in effect on Resaca passing siding. |
| |
| Maximum Authorized Speed |
|---|
| Between Location/Mile Post |
MPH |
| J145.7 and WA22.4 |
60 |
| Tyner Junction and Tyner |
10 |
| |
| Defect Detectors |
|---|
| MP |
Location |
Type |
Indicators |
| WA133.7 |
Boyce |
|
Voice Instructions |
| WA109.9 |
Ringgold |
|
Voice Instructions |
| WA88.4 |
Resaca |
|
Voice Instructions |
| WA67.6 |
Adairsville |
|
Voice Instructions |
| WA47.4 |
Cartersville |
|
Voice Instructions |
| WA25.9 |
Day |
|
Voice Instructions |
| |
| Railroad Crossings at Grade |
|---|
| MP |
Location |
Railroad |
Protection |
| J149.3 |
Wheland |
NS |
Automatic |
| WA136.0 |
Chattanooga |
NS |
Remotely Controlled (NS) |
| WA99.0 |
Dalton |
NS |
Remotely Controlled (CSX) |
|
