Baltimore Division
Hanover Subdivision
(Baltimore, MD to Hagerstown, MD)
Hanover Subdivision-HV

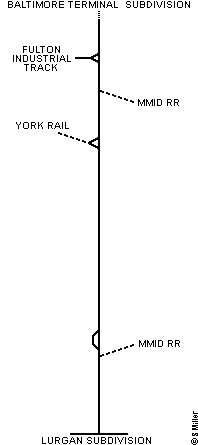

Station List and Diagram
This information comes from the 'CSX Transportation Baltimore Division Timetable No. 3', effective Saturday, April 1, 2000.
Radio:  BE Dispatcher channel 86,  Road channel 08
109.3 Miles  ·  Yard Limit Baltimore Terminal to NC Tower
â WEST â MP Station Siding Notes
BAS0.5 YL   End Baltimore Terminal SD
Begin Hanover SD
BAS4.0 Walbrook Junction   Jct Fulton Industrial Track
BAS7.7 Leahigh EE
BAS29.3 Hampstead   Jct MMID
BAS38.9 Lineboro
BAS48.7 Porters Wye   Jct York Rail
BAS49.2 Junction Switch
BAS53.1 Hanover
BAS55.5 Elm
BAS57.0 Bittinger
BAS59.0 Berlin Junction
BAS60.5 New Oxford
BAS70.8 Gettysburg
BAS90.3 Greenstone
BAS93.1 Highfield   Jct MMID
BAS93.7 Vista
BAS107.3 Security
BAS109.8 NC Tower   End Hanover SD
Jct Lurgan SD
Authority for Movement
Between Location/Mile Post Rules
BAS0.5 and BAS17.4 120-132
BAS17.4 and BAS22.2 93
BAS22.2 and BAS48.3 120-132
BAS48.3 and BAS58.0 93
BAS58.0 and BAS92.3 120-132
BAS92.3 and BAS94.1 93
BAS94.1 and BAS106.7 120-132
BAS106.7 and NC Tower 93
Note: Storage tracks at Emory Grove are designated interchange tracks between CSX and Maryland Midland Railroad (MMID). MMID engines and trains may use CSX trackage from BAS17.4 to BAS21.0 for the purpose of interchange.
DTC Block Limits
Between Mt Winans and Security
Between Location/Mile Post Block Names
BAS0.5 and BAS7.8 Tide
BAS7.8 and BAS17.4 Emory
BAS22.2 and BAS30.1 Fowble
BAS30.1 and BAS39.0 Line
BAS39.0 and BAS48.3 Porter
BAS58.0 and BAS72.0 Camp
BAS72.0 and BAS82.3 Tanna
BAS82.3 and BAS92.3 Pen
BAS94.1 and BAS106.7 Hager
Maximum Authorized Speed
Between Location/Mile Post MPH
BAS0.5 and Walbrook Junction 25
Walbrook Junction and Yard Limits Emory Grove 40
Yard Limits Emory Grove and BAS47.5 30
BAS47.5 and Antietam Street 25
Defect Detectors
MP Location Type Indicators
BAS14.2 Owings Mill   Voice Instructions
