Chicago Division
Barr Subdivision
(Willow Creek, IN to Blue Island, IL)
|
Barr Subdivision-M5

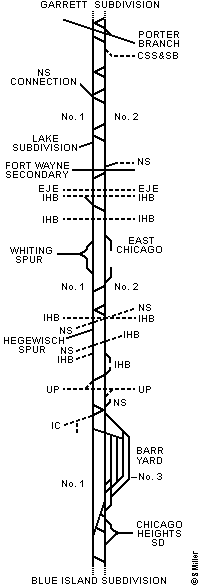

Station List and Diagram
This information comes from the 'CSX Transportation Chicago Division Timetable No. 1', effective Saturday, July 1, 2000.
|
|
Radio: RA Dispatcher channel 14, Road channel 08, Halsted Tower YM channel 19, Ashland Tower YM channel 80 |
|
26.8 Miles · Willow Creek to Blue Island Junction |
| â WEST â |
MP |
Station |
Siding |
Notes |
 |
BI236.9 |
Willow Creek |
|
End Garrett SD
Begin Barr SD, Jct Porter Branch |
| BI239.0 |
Miller |
|
Jct CSSSB |
| BI243.7 |
East Gary |
X-overs |
|
| BI246.4 |
East End Curtis |
X-overs |
|
BI248.8
DC0.0 |
Pine Junction |
X-overs |
Jct Lake SD |
| DC0.4 |
Clarke Junction |
X-overs |
Jct Fort Wayne Secondary, Jct NS |
| DC2.6 |
Calumet Tower |
|
Jct EJ&E, Jct IHB |
| DC3.2 |
Republic |
|
Jct IHB |
| DC4.8 |
Columbia Avenue |
X-over |
|
| DC6.0 |
State Line |
X-overs |
Jct NS, Jct IHB |
| DC7.2 |
Calumet Park |
X-over |
Jct NS, Jct IHB |
| DC10.4 |
CP Cottage Grove |
X-over |
|
| DC10.7 |
Dolton |
|
Jct UP |
| DC11.4 |
Riverdale |
X-overs |
Jct NS, Jct IC |
| |
|
|
Barr Yard |
| DC13.9 |
Roll Avenue |
|
|
| DC14.1 |
Harvey Junction |
X-over |
Jct Chicago Heights SD |
| DC15.0 |
Blue Island Junction |
|
End Barr SD
Begin Blue Island SD |
| Authority for Movement |
|---|
| Between Location/Mile Post |
Rules |
| BI236.9 Willow Creek and DC10.7 Dolton |
265-271 (93) |
| DC10.7 Dolton |
255-259 (93) |
| DC10.7 Dolton and DC15.0 Blue Island Junction |
265-271 (93) |
| DC15.0 Blue Island Junction |
255-259 (93) |
| |
| Maximum Authorized Speed |
|---|
| Between Location/Mile Post |
MPH |
| BI236.9 Willow Creek and BI248.8 Pine Junction |
70 |
| DC0.0 Pine Junction and BI15.0 Blue Island Junction |
40 |
| Whiting Spur |
10 |
| Hegewisch Spur |
5 |
| |
| Defect Detectors |
|---|
| MP |
Location |
Type |
Indicators |
| BI239.0 |
Miller |
|
|
| DC10.4 |
Cottage Grove |
|
|
| |
| Railroad Crossings at Grade |
|---|
| MP |
Location |
Railroad |
Protection |
 |
Willow Creek |
CSXT |
Remotely Controlled |
| |
Clarke Junction |
CSXT |
Remotely Controlled |
| |
Calumet Tower |
IHB, EJE |
Remotely Controlled |
| |
Republic |
IHB |
Remotely Controlled |
| |
Stateline |
IHB, NS |
Remotely Controlled |
| |
Dolton |
UP |
Manual Interlocking |
|
