Florence Division
Columbia Subdivision
(Columbia, SC to Savannah, GA)
|
Columbia Subdivision-C2

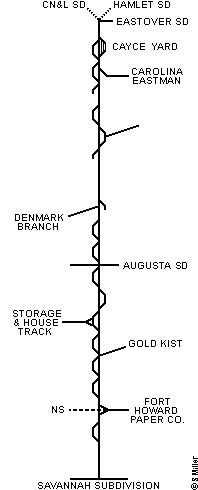

Station List and Diagram
This information comes from the 'CSX Transportation Florence Service Lane Timetable No. 2', effective Thursday, April 1, 1999.
|
|
Radio: FD Dispatcher channel 20, Road channel 66 |
|
137.9 Miles · Columbia to Central Junction |
| â SOUTH â |
MP |
Station |
Siding |
Notes |
 |
S359.4 |
Columbia |
|
End Hamlet SD, Jct Eastover SD
Jct CN&L SD, Begin Columbia SD |
| S362.3 |
Cayce |
|
Cayce Yard |
| S366.3 |
Dixiana |
2624' |
Jct Carolina Eastman Spur |
| S375.0 |
Gaston |
|
|
| S377.2 |
Nassau |
6864' |
|
| S385.3 |
Woodford |
2193' |
|
| S394.0 |
Livingston |
|
|
| S401.3 |
Norway |
|
|
| S410.3 |
Denmark |
|
Jct Denmark Branch |
| S412.2 |
Denmark Siding |
6336' |
|
| S426.6 |
Ulmer |
2203' |
|
| S436.0 |
Fairfax |
2245' |
Jct Augusta SD |
| S443.5 |
Gifford |
7392' |
|
| S450.1 |
Estill |
3321' |
Storage and House Track |
| S459.2 |
Garnett |
9963' |
Gold Kist Spur |
| S468.7 |
Clyo |
2519' |
|
| S476.0 |
Stillwell |
10400' |
|
| S480.8 |
Sepco Junction |
|
Jct NS |
| S490.0 |
Meinhard |
2223' |
|
| S497.3 |
Central Junction |
|
End Columbia SD
Jct Savannah SD |
| Additional Stations |
|---|
| MP |
Station |
Capacity |
Switch |
Notes |
| S366.4 |
Carolina Eastman |
Spur |
North |
2.9 miles |
| S367.1 |
Silica |
90 |
Both |
|
| S367.4 |
Fosters |
Spur |
North |
|
| S394.0 |
Livingston |
6 |
North |
|
| S420.3 |
Olar |
6 |
South |
|
| S430.5 |
Sycamore |
27 |
North |
|
| S466.4 |
Goldkist |
Spur |
South |
|
| S480.8 |
Sepco Junction |
Spur |
Both |
5.5 miles |
| |
| Authority for Movement |
|---|
| Between Location/Mile Post |
Rules |
| S359.4 and S368.0 |
265-272 (93) |
| S368.0 and S497.1 |
265-272 |
| S497.1 and S497.3 |
265-272 (93) |
| North Leg of Wye, SEPCO |
265-272 |
| Westward absolute signal at North Wye switch to Westward absolute signal at Railroad crossing at grade on SEPCO Lead |
265-272 |
| Note: Rules 265-272 are in effect on Gifford, Nassau, Denmark, Garnet and Stillwell. |
| |
| Maximum Authorized Speed |
|---|
| Between Location/Mile Post |
MPH |
| S359.4 and S497.3 |
60 |
| |
| Defect Detectors |
|---|
| MP |
Location |
Type |
Indicators |
| S371.6 |
Gaston |
AD |
None |
| S395.4 |
Neeses |
AD |
None |
| S414.1 |
Denmark |
AD |
None |
| S433.4 |
Sycamore |
AD |
None |
| S454.1 |
Scotia |
AD |
None |
| S478.9 |
Stillwell |
AD |
None |
| |
| Railroad Crossings at Grade |
|---|
| MP |
Location |
Railroad |
Protection |
| S436.0 |
Fairfax |
CSX |
Remotely Controlled |
| S480.8 |
Sepco |
NS |
Remotely Controlled |
|
