Appalachian Division
KP Subdivision
(Elkhorn City, KY to Erwin, TN)
|
KP Subdivision-KP

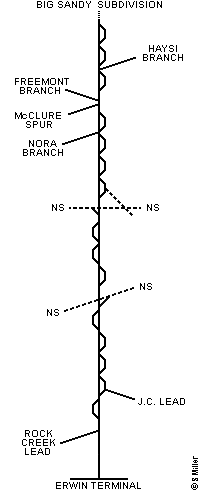

Station List and Diagram
This information comes from the 'CSX Transportation Appalachian Division Timetable No. 1', effective Saturday, January 1, 2000.
|
|
Radio: AO Dispatcher channel 94, Road channel 66 |
|
133.2 Miles · Elkhorn City to Erwin |
| â SOUTH â |
MP |
Station |
Siding |
Notes |
 |
CMG128.0
Z0.5 |
Elkhorn |
8250' |
End Big Sandy SD
Begin KP SD |
| Z6.0 |
Towers |
8939' |
|
| Z14.4 |
Delano |
6235' |
|
| Z22.8 |
Caney Junction |
|
Jct Fremont Br [DEAD], McClure Spur |
| Z24.3 |
Allen |
6102' |
|
| Z31.9 |
Trammel |
3691' |
Jct Nora Branch |
| Z35.1 |
Dante |
5500' |
|
| Z40.8 |
Boody |
7713' |
Jct NS |
| Z42.2 |
St. Paul |
|
Jct NS |
| Z53.1 |
Miller Yard |
8200' |
|
| Z69.2 |
Starnes |
7268' |
|
| Z82.2 |
Kermit |
7330' |
|
| Z88.2 |
Frisco |
|
Jct NS |
| Z93.9 |
Kingsport |
17278' |
|
| Z103.9 |
Fordtown |
6330' |
|
| Z111.8 |
Boone |
6097' |
|
| Z121.0 |
Johnson City |
16983' |
Jct Johnson City Lead |
| Z129.6 |
Hannum |
6580' |
|
| Z132.4 |
Rock Creek Lead |
|
Jct Rock Creek Lead |
| Z133.7 |
Erwin |
|
End KP SD
Begin Erwin Terminal, To BR SD |
| Authority for Movement |
|---|
| Between Location/Mile Post |
Rules |
| Z0.5 Elkhorn and Z133.7 Erwin |
265-272 |
| ZH0.0 and ZH3.2 (Haysi Branch) |
120-132 |
| ZF0.0 and ZF11.8 Fremont Branch [closed 2018.05.02] |
120-132 |
| ZN0.0 and ZN2.2 End of Track (Nora Branch) |
120-132 |
| Note: Rules 265-272 are in effect on Kingsport and Johnson City Sidings. |
| |
DTC Block Limits
Haysi Branch |
|---|
| Between Location/Mile Post |
Block Names |
| ZH0.0 and ZH3.2 |
Pittco |
| Fremont Branch |
|---|
| ZF0.0 and ZF1.5 |
Caney |
| ZF1.5 and ZF5.5 |
Cranes Nest |
| ZF5.5 and ZF11.8 |
Moss |
| Nora Branch |
|---|
| ZN0.0 and ZN2.2 End of Track |
Wohlford |
| |
| Maximum Authorized Speed |
|---|
| Between Location/Mile Post |
MPH |
| Elkhorn City and Erwin |
45 |
| Haysi Branch |
10 |
| Fremont Branch |
10 |
| Nora Branch |
10 |
| |
| Defect Detectors |
|---|
| MP |
Location |
Type |
Indicators |
| Z8.2 |
Tom's Bottom |
AD |
West side |
| Z21.6 |
Freemont |
AD |
West side |
| Z49.4 |
Carfax |
AD |
West side |
| Z64.8 |
Fort Blackmore |
AD |
West side |
| Z85.4 |
Wininger |
AD |
West side (Channel 08) |
| Z99.4 |
Hemlock |
AD |
West side (Channel 08) |
| Z115.2 |
Indian Ridge |
AD |
East side |
| Z131.2 |
North Erwin |
AD |
West side (Channel 08) |
|
