Nashville Division
Nashville Terminal Subdivision
(Nashville, TN)
SIGNAL LIST
Nashville Terminal Subdivision-NA

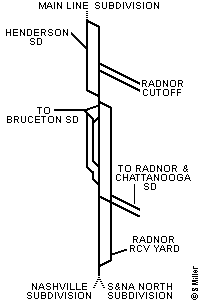

Station List and Diagram
This information comes from the 'CSX Transportation Nashville Division Timetable No. 1', effective Sunday, October 1, 2000.
Radio:  AJ Dispatcher channel 66,  Road channel 84,  Kayne Avenue channel 44,25,  Bowl channel 22,10,25,80,18,  Hump channel 22,96,25,10,18,  A&B Towers channel 40
22.1 Miles  ·  Monfort to Brentwood
â SOUTH â MP Station Siding Notes
174.7 Montfort   End Mainline SD, NEDT
Begin Nashville Terminal SD
177.0 Amqui   Jct Henderson SD
181.0 Maplewood   Jct Radnor Cutoff
185.0 CR Draw Bridge   Single Track
186.0 Church Street
186.2
N0.0
J0.0		 Kayne Avenue
187.7 Oak Street
193.8 Radnor Rcv Yard
196.8 Brentwood   End Nashville Term SD, SEDT
Begin S&NA North SD,
Begin Nashville SD
5.8 Miles  ·  Oak Street to Danley
â SOUTH â MP Station Siding Notes
J1.4 Oak Street   To S&NA North SD, Mainline SD
J4.9 Glencliff   SEDT, Jct Radnor Cutoff
J7.2 Danley   End Nashville Terminal SD
Begin Chattanooga SD
4.4 Miles  ·  Oak Street to Sellers
â SOUTH â MP Station Siding Notes
J1.4 Oak Street
J0.0
N0.0
186.2		 Kayne Avenue
N0.7 11th Avenue
N3.0 Sellers   End Nashville Terminal SD
SEDT, Begin Bruceton SD
22.1 Miles  ·  Maplewood to Radnor
â SOUTH â MP Station Siding Notes
BA181.0 Maplewood
BA184.8 Shelby Park Bridge
BA188.3 North Radnor

BA192.0 Hump

BA193.8 Radnor Rcv Yard

Authority for Movement
Between Location/Mile Post Rules
174.7 Monfort and 196.8 Brentwood 265-272
Nashville Bowl Office and 192.2 Mayton via B-Line 243-246 (93)
Via Radnor Cutoff
BA181.0 Maplewood and BA188.3 North Radnor 265-272
BA188.3 North Radnor via L-Line and BA192.0 Hump 243-246 (93)
To Bruceton Subdivision
N0.3 Church Street and N3.0 Sellers 265-272
185.6 8th Avenue and N0.7 11th Avenue via WYE 265-272
To Chattanooga Subdivision
J1.4 Oak Street and J7.2 Danley 265-272
A-1 Line (North Radnor to Chattanooga SD #1 Main Track) 265-272
A-2 Line (North Radnor to Chattanooga SD #2 Main Track) 265-272
Note: L-Line block signals display aspects for southward movement only
Maximum Authorized Speed
Between Location/Mile Post MPH
174.6 Monfort and 180.8 Maplewood #2 Track 50
176.8 Amqui and 180.8 Maplewood #1 Track 50
174.6 Monfort and 176.8 Amqui #1 Track 30
180.0 Maplewood and 184.5 CR Drawbridge 30
184.5 CR Drawbridge and J1.8 10
J1.8 4th Avenue and J4.9 Glencliff 40
D-Line 30
N0.0 and N0.7 10
N0.7 and N3.0 30
187.7 Oak Street and 192.7 Mayton 30
192.7 Mayton and 196.8 Brentwood 40
Radnor Cutoff
BA181.1 Maplewood and BA184.8 north end Shelby Park Bridge 30
North end Shelby Park Bridge and North Radnor 30
A-1 Line 10
A-2 Line 10
Defect Detectors
MP Location Type Indicators
179.0 Ekin AD West side for West Track
East side for East Track
BA188.1 North Radnor AD West side
