Nashville Division
St. Louis Subdivision
(Okawville, IL to Evansville, IN)
leased to Evansville Western RR
|
St. Louis Subdivision-SL

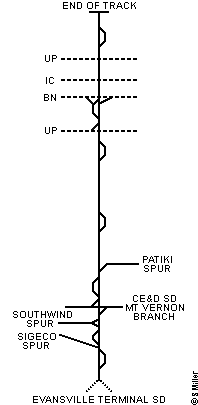

Station List and Diagram
This information comes from the 'CSX Transportation Nashville Division Timetable No. 1', effective Sunday, October 1, 2000.
|
|
Radio: SB Dispatcher channel 94, Road channel 84 |
|
124.9 Miles · Venedy to North Howell |
| â SOUTH â |
MP |
Station |
Siding |
Notes |
 |
H445.7 |
Okawville |
|
|
| H441.2 |
Addieville |
5410' |
|
| H434.7 |
Nashville |
|
Jct UP |
| H424.1 |
Ashley |
|
Jct IC |
| H415.1 |
Woodlawn |
5445' |
Jct BN |
| H408.1 |
Mt Vernon, IL |
|
Jct UP |
| H387.7 |
Delafield |
5432' |
|
| H382.7 |
McLeansboro |
|
|
| H377.3 |
Inland |
|
|
| H364.5 |
Trumbull |
5412' |
|
| H360.3 |
Carmi |
|
|
| H356.6 |
Epworth |
4134' |
Jct Patiki Spur |
| H345.5 |
Upton |
5575' |
|
| H341.4 |
Mt Vernon, IN |
|
Jct Mt Vernon Branch |
| H337.4 |
Lamott |
2418' |
|
| H328.6 |
Belknap |
5428' |
|
| H323.7 |
Barker Avenue |
|
End St Louis SD
Jct Evansville Terminal SD |
Mt Vernon Branch
2.8 Miles · Country Yard to GE Lead |
| â SOUTH â |
MP |
Station |
Siding |
Notes |
 |
ZJ300.0 |
Country Yard |
|
|
| ZJ301.3 |
St Louis SD |
|
Jct St Louis SD |
| ZJ301.7 |
East Main |
935' |
|
| ZJ302.8 |
GE Runaround |
1705' |
|
| Authority for Movement |
|---|
| Between Location/Mile Post |
Rules |
| H323.4 and H323.5 |
93 |
| H323.5 and H344.9 |
120-132 (243-246) |
| H344.9 and H448.6 |
120-132 |
| ZJ300.0 and ZJ302.8 |
105 |
| |
DTC Block Limits
Between North Howell and End of Track |
|---|
| Between Location/Mile Post |
Block Names |
| H323.5 and H331.6 SWT at Sigeco |
Howell |
| H331.6 and H339.8 |
Belknap |
| H339.8 and H344.9 |
B&K |
| H344.9 and H359.1 |
Upton |
| H359.1 and H377.2 |
Carmi |
| H377.2 and H386.2 |
Inland |
| H386.2 and H403.1 |
Delafield |
| H403.1 and H414.1 |
Shirley |
| H414.1 and H423.9 |
Woodlawn |
| H423.9 and H440.8 |
Ashley |
| H440.8 and H448.6 |
Addieville |
| |
| Maximum Authorized Speed |
|---|
| Between Location/Mile Post |
MPH |
| H323.4 North Howell and H448.6 |
40 |
| Sigeco Spur |
20 |
| Patiki Spur |
20 |
| Southwind Maritime Centre Spur |
20 |
| |
| Defect Detectors |
|---|
| MP |
Location |
Type |
Indicators |
| H334.7 |
Caborn |
AD |
East side |
| H355.1 |
Epworth |
AD |
West side |
| H374.1 |
Robanna |
AD |
East side |
| H400.2 |
Opdyke |
AD |
East side |
| |
| Railroad Crossings at Grade |
|---|
| MP |
Location |
Railroad |
Protection |
| H341.7 |
Mt Vernon, IN |
CSX |
Automatic |
| H406.6 |
Mt Vernon, IL |
UP |
Remotely Controlled |
| H415.5 |
Woodlawn |
BN |
Automatic |
| H423.7 |
Ashley |
IC |
Automatic |
| H434.9 |
Nashville |
UP |
Automatic |
|
