Baltimore Division
Baltimore Terminal Subdivision
(Baltimore, MD)
SIGNAL LIST
Baltimore Terminal Subdivision-BZ

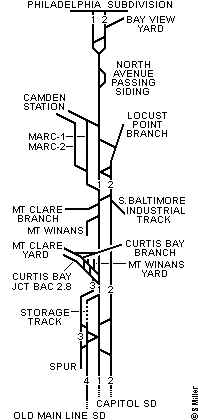

Station List and Diagram
This information comes from the 'CSX Transportation Baltimore Division Timetable No. 3', effective Saturday, April 1, 2000.
Radio:  BE Dispatcher channel 66,  Road channel 08,  Penn Mary YM channel 63,  Locust Point YM channel 24,  Curtis Bay YM channel 70
12.5 Miles  ·  Bay View to Halethorpe
â WEST â MP Station Siding Notes
BAK89.6 Bay View Yard End Philadelphia SD
Begin Baltimore Terminal SD
BAK91.5 Clifton Park   WEDT
BAK93.5 Huntington Avenue 4800'
BAK94.6 Mount Royal
BAK96.4
BAA0.4		 HB Tower   Camden Station Lead
BAA0.7 Bailey   Jct Locust Point Branch
BAA1.5 Carroll   EEDT, Jct Mt Clare Branch
S. Baltimore Industrial Track
BAC2.8 Curtis Bay Junction   Jct Curtis Bay Branch
BAC3.2
BAA3.2		 West Baltimore
BAA5.6 BTSC
BAC5.8
BAA5.8		 Halethorpe
BAC5.9
BAA5.9		     End Baltimore Terminal SD
Begin Old Main Line SD
Begin Capital SD
Mount Clare Branch
2.2 Miles  ·  Carroll to Curtis Bay Junction
â WEST â MP Station Siding Notes
BAN0.0 Carroll
BAN0.3 Washington Boulevard   Yard Limit
BAN2.2 Curtis Bay Junction
Curtis Bay Branch
3.3 Miles  ·  Brooklyn Junction to Curtis Bay Junction
â WEST â MP Station Siding Notes
BAO0.0 Brooklyn Yard
BAO1.6 Clifford   B&A Interchange
BAO3.1 Zepp   WEDT
BAO3.3 Curtis Bay Junction
Locust Point Branch
0.8 Miles  ·  Barney Street to Bailey
â WEST â MP Station Siding Notes
BAM0.0 Barney Street Yard
BAM0.5 Leandenhall Street   WEDT
BAM0.8 Bailey
West Point Branch
1.0 Miles  ·  Westport to Yard Limits
â WEST â MP Station Siding Notes
BRN0.5 Westport   EEDT
BRN0.0
BAS0.0		 Mount Winans
BAS0.5 Yard Limits   WEDT, End Baltimore Terminal SD
Begin Hanover SD
Authority for Movement
Between Location/Mile Post Rules
BAK89.6 Bay View and BAA5.9 Halethorpe 265-272 (93)
Notes 1,2,3
BAC2.8 Curtis Bay Junction and BAC5.9 Halethorpe 265-272 (93)
BAM0.0 Barney Street and BAM0.8 Bailey 265-272 (93)
BAN0.0 Carroll and BAN0.3 Washington Street 265-272 (93)
BAO0.0 Brooklyn and BAO3.3 Curtis Bay Junction 265-272 (93)
BRN0.5 Westport and BAS0.5 Winans Yard Limits D-251 (93) Note 4
Note:
1. Rules 265-272 are in effect on all sidings.
2. Rule 274 is in effect for eastward helper engines only between WAS HB Tower and EAS Mt Royal.
3. Rules 243-246 are in effect for westward movement on South Baltimore Industrial Track between Westport and Carroll.
4. Rules 265-272 are in effect between the Westport Branch and West Baltimore on the connection track (no. 11 Mt Winans)
Maximum Authorized Speed
Between Location/Mile Post MPH
BAK89.6 Bay View and BAA5.9 Halethorpe 50
BAC2.8 Curtis Bay Junction and BAC5.9 Halethorpe 20
BAM0.0 Barney Street and BAM0.8 Bailey 15
BAN0.0 Carroll and BAN0.3 Washington Street 10
BAO0.0 Brooklyn and BAO3.3 Curtis Bay Junction 15
BRN0.5 Westport and BAS0.5 Winans Yard Limits 10
Defect Detectors
MP Location Type Indicators
BAK92.0 Waverly   Voice Instructions
Railroad Crossings at Grade
MP Location Railroad Protection
Penn Mary Canton Absolute Signal
  Penn Mary NS Absolute Signal
