RAILFAN GUIDE
Atlanta Division
Boyles Terminal Subdivision (BU)
Fultondale, AL to Hoover, AL
24.4 miles CP New Castle to CP Parkwood Junction
Radio: Road channel 084 (161.37 MHz)
AB dispatcher channel 074 (161.22 MHz)
South Yard RCZ channel 022 (160.44 MHz)
South Yard RCZ channel 032 (160.59 MHz)
South Yard channel 066 (161.1 MHz)
West Yard channel 060 (161.01 MHz)
Revised 2026.10.12

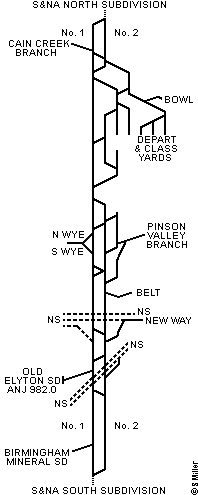

| ↓ SOUTH ↓ | Milepost | Name | Function | Notes |
|---|---|---|---|---|
    S&NA North sub Track 1 2 Track |
S&NA North | division point | END S&NA North sub BEGIN Boyles Terminal subdivision, Birmingham, Alabama |
|
  379.8 |
379.8 | Castle Pine | DD | Castle Pine defect detector |
 |
383.5 | Black Creek | signal | Holdout absolute signal; southbound trains must contact yardmaster on AAR084 |
  |
383.8 | Black Creek | xover yard |
crossover 1-2 Inbound yard lead 2 |
| |
383.8 | Black Creek | xover yard |
crossover 1-2 Inbound yard lead 1 |
 Inbound leads |
x | x | x | x |
| bowl |
x | bowl | yard | Open bowl lead |
| |
385.9 | Five Mile Creek | xover | crossover 2-1 |
| Departure |
x | x | x | x |
| |
386.7 | AX | yard xover |
Departure yard crossover 2-1 |
| N wye Receiving |
388.2 | FY | yard xover wye |
Receiving yard crossover 2-1 north leg of wye |
 YB open |
x | Bham mineral | junction yard |
Birmingham Mineral sub open track |
| S wye |
388.6 | Mary Lee | yard xovers wye |
open track crossovers south leg of wye |
| |
XYZZY | XYZZY | XYZZY | XYZZY |
Notes
Note 1: 2026.10.12 — Please send me an update if anything needs it.
