Chicago Division
Lafayette Subdivision
(Lafayette, IN to Cloverdale, IN)
Merged into Monon subdivision
|
Lafayette Subdivision

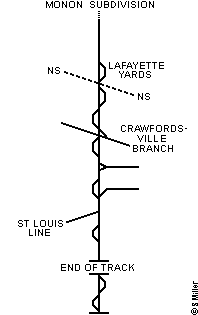

Station List and Diagram
This information comes from the 'CSX Transportation Chicago Division Timetable No. 2', effective Sunday, October 1, 2000.
|
|
Radio: SA Dispatcher channel 14, Road channel 84 |
76.3 Miles · Lafayette to Cloverdale
9.1 Miles · Ellettsville to South McDoel |
| â SOUTH â |
MP |
Station |
Siding |
Notes |
 |
Q113.3 |
|
|
End Monon SD
Begin Lafayette SD |
| Q118.1 |
Lafayette |
|
|
| Q120.1 |
Lafayette Station |
|
|
| Q121.5 |
Lafayette Junction |
5470' |
Jct NS |
| Q137.0 |
Linden |
6790' |
|
| Q148.4 |
Ames |
5360' |
Jct Crawfordsville Branch SD |
| Q152.2 |
NUCOR Steel |
|
|
| Q162.2 |
Roachdale |
3930' |
|
| Q177.8 |
Greencastle |
|
Jct St Louis Line SD |
| Q180.6 |
Cement |
2510' |
|
| Q189.6 |
Cloverdale |
|
End of Track |
| Q217.9 |
Hunters |
3270' |
End of Track |
| Q220.5 |
McDoel |
1492' |
|
| Authority for Movement |
|---|
| Between Location/Mile Post |
Rules |
| Q113.3 and Q119.3 |
93 (243-246) |
| Q119.3 and Q119.4 |
255-259 |
| Q119.4 and Q120.6 |
93 (243-246) |
| Q120.6 and Q120.7 |
255-259 |
| Q120.7 and Q176.7 |
120-132 (243-246) |
| Q176.7 and Q189.6 |
120-132 |
| Q213.4 and Q222.5 |
120-132 |
| QA88.3 and QA98.0 (Indianapolis Branch) |
120-132 |
| QB1.0 and QB14.8 |
S-146 |
| |
DTC Block Limits
Between Lafayette and McDoel |
|---|
| Between Location/Mile Post |
Block Names |
| Q120.7 and Q124.0 |
Industry |
| Q124.0 and Q136.9 |
Linden |
| Q136.9 and Q149.5 |
Ames |
| Q149.5 and Q163.0 |
Roachdale |
| Q163.0 and Q176.7 |
Greencastle |
| Q176.7 and Q180.0 |
Limedale |
| Q180.0 and Q189.6 |
Wallace Junction |
| Q213.4 and Q222.5 |
McDoel |
| QA88.3 and QA98.0 (Indianapolis Branch) |
Delphi |
| |
| Maximum Authorized Speed |
|---|
| Between Location/Mile Post |
MPH |
| Q113.3 Lafayette and Q147.6 Ames |
60 |
| Q147.6 Ames and Q190.0 Cloverdale |
25 |
| Q213.4 Ellettsville and Q220.5 McDoel |
25 |
| |
| Defect Detectors |
|---|
| MP |
Location |
Type |
Indicators |
| Q113.3 |
Battle Ground |
|
West side |
| Q130.6 |
South Raub |
|
East side |
| Q150.5 |
Crawfordsville |
|
West side |
| Q172.4 |
Cary |
|
East side |
| Q214.0 |
Woods |
|
West side |
| |
| Railroad Crossings at Grade |
|---|
| MP |
Location |
Railroad |
Protection |
| Q148.4 |
Ames |
NS |
Automatic |
| QA88.8 |
Monon |
CSX |
Stop Signs |
|
