Chicago Division
Monon Subdivision
(Maynard, IN to Lafayette, IN)
|
Monon Subdivision-MO

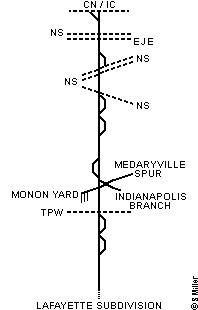

Station List and Diagram
This information comes from the 'CSX Transportation Chicago Division Timetable No. 1', effective Saturday, July 1, 2000.
|
|
Radio: RA Dispatcher channel 14, Road channel 84, Lafayette YM channel 84 |
|
87.9 Miles · Maynard to Lafayette
|
| â SOUTH â |
MP |
Station |
Siding |
Notes |
 |
Q25.4 |
Maynard |
|
Jct CN/IC |
| Q27.6 |
Dyer |
|
Jct NS, Jct EJE |
| Q29.0 |
Dyer Siding |
2665' |
Jct NS |
| Q44.8 |
Lowell |
|
|
| Q56.5 |
Rose Lawn |
4095' |
Jct NS |
| Q68.1 |
Surrey |
5415' |
|
| Q73.1 |
Rensselaer |
|
|
| Q88.4 |
Monon |
|
Jct Medaryville Spur
Jct Indianapolis Branch |
| Q95.8 |
Reynolds |
3600' |
Jct TPW |
| Q106.2 |
Brookston |
5470' |
|
| Q110.2 |
Ash Grove |
|
|
| Q113.3 |
Lafayette |
|
End Monon SD
Begin Lafayette SD |
|
9.6 Miles · Monon to Monticello
|
| â SOUTH â |
MP |
Station |
Siding |
Notes |
 |
QA88.4 |
Monon |
|
Jct Main Track
Jct Medaryville Spur |
| QA98.0 |
Monticello |
|
Jct GTW |
| Authority for Movement |
|---|
| Between Location/Mile Post |
Rules |
| Q25.4 and Q113.3 |
120-132 (243-246) |
| QA88.3 and QA98.0 (Indianapolis Branch) |
120-132 |
| QB1.0 and QB14.8 (Medaryville Spur) |
S-146 |
| |
DTC Block Limits
Between Maynard and Lafayette |
|---|
| Between Location/Mile Post |
Block Names |
| Q25.4 and Q30.4 |
Dyer |
| Q30.4 and Q45.5 |
Lowell |
| Q45.5 and Q68.2 |
Surrey |
| Q68.2 and Q86.1 |
Monon |
| Q86.1 and Q90.3 |
Junction |
| Q90.3 and Q102.2 |
Chalmers |
| Q102.2 and Q113.3 |
Brookston |
| QA88.3 and QA98.0 (Indianapolis Branch) |
Delphi |
| |
| Maximum Authorized Speed |
|---|
| Between Location/Mile Post |
MPH |
| Q25.8 and Q113.3 |
60 |
| |
| Defect Detectors |
|---|
| MP |
Location |
Type |
Indicators |
| Q36.8 |
Cedar Lake |
|
East side |
| Q54.1 |
Thayer |
|
West side |
| Q75.0 |
Rensselaer |
|
East side |
| Q92.8 |
Monon |
|
East side |
| Q113.3 |
Battle Ground |
|
West side |
| |
| Railroad Crossings at Grade |
|---|
| MP |
Location |
Railroad |
Protection |
| Q29.1 |
Dyer |
NS/EJE |
Automatic |
| Q33.2 |
St John |
NS |
Automatic |
| Q52.6 |
Shelby |
NS |
Automatic |
| Q95.8 |
Reynolds |
TPW |
Automatic |
| QA88.8 |
Monon |
CSX |
Stop Signs |
|
