Louisville Division
Illinois Subdivision
(Washington, IN to East St. Louis, IL)
|
Illinois Subdivision-IL

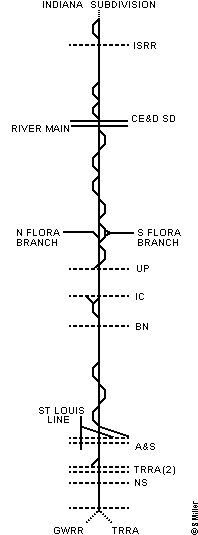

Station List and Diagram
This information comes from the 'CSX Transportation Louisville Division Timetable No. 1', effective Sunday, October 1, 2000.
|
|
Radio: CF Dispatcher channel 14, Road channel 08 |
|
165.1 Miles · Washington to K Tower |
| â WEST â |
MP |
Station |
Siding |
Notes |
 |
BC170.3 |
Washington |
7200' |
End Indiana SD
Begin Illinois SD |
| BC171.4 |
Chappel |
|
Jct ISRR |
| BC176.7 |
Wheatland |
|
|
| BC183.3 |
Fritchton |
3900' |
|
| BC188.5 |
Vincennes |
2900' |
Jct CE&D SD |
| BC193.5 |
Beman |
7250' |
|
| BC198.5 |
Lawrenceville |
6550' |
|
| BC220.3 |
Olney |
3300' |
|
| BC228.0 |
Noble |
8650' |
|
| BC242.5 |
Flora |
11500' |
Jct Flora Branch |
| BC259.4 |
Iuka |
4300' |
|
| BC267.8 |
Salem |
|
Jct UP |
| BC273.5 |
Odin |
8800' |
Jct IC |
| BC281.2 |
Shattuc |
|
Jct BN |
| BC290.7 |
Carlyle |
|
|
| BC299.4 |
Breese |
4560' |
|
| BC303.8 |
Aviston |
7200' |
|
| BC321.0 |
Carbon |
7250' |
|
| BC331.1 |
HN Cabin |
|
Jct St Louis Line SD, Jct A&S |
| BC334.1 |
Willows |
|
Jct NS |
| BC334.4 |
Exchange Avenue |
|
|
| BC335.5 |
K Tower
(East St Louis) |
|
End Illinois SD
Jct GWWR, Jct TRRA |
| Authority for Movement |
|---|
| Between Location/Mile Post |
Rules |
| BC170.3 and BC329.6 |
120-132 (243-246) |
| BC329.6 and HN Cabin |
93 (255-259) |
| HN Cabin |
255-259 |
| HN Cabin and Willows |
265-271 |
| Willows |
255-259 (93) |
| |
DTC Block Limits
Between Washington and East St. Louis |
|---|
| Between Location/Mile Post |
Block Names |
| BC170.3 and BC175.0 |
Wash |
| BC175.0 and BC183.3 |
Wheat |
| BC183.3 and BC187.6 |
Fritch |
| BC187.6 and BC192.6 |
Vince |
| BC192.6 and BC198.4 |
Beman |
| BC198.4 and BC219.3 |
Bridge |
| BC219.3 and BC227.8 |
Olney |
| BC227.8 and BC241.5 |
Noble |
| BC241.5 and BC259.1 |
Flora |
| BC259.1 and BC273.5 |
Iuka |
| BC273.5 and BC298.2 |
Odin |
| BC298.2 and BC303.2 |
Meyer |
| BC303.2 and BC320.7 |
Avis |
| BC320.7 and BC329.6 |
Casey |
| |
| Maximum Authorized Speed |
|---|
| Between Location/Mile Post |
MPH |
| BC170.3 Washington and BC334.1 Willows |
60 |
| |
| Defect Detectors |
|---|
| MP |
Location |
Type |
Indicators |
| BC190.8 |
Vincennes |
AD |
South side |
| BC215.9 |
Onley |
AD |
South side |
| BC239.1 |
Flora |
AD |
South side |
| BC263.0 |
Bannister |
AD |
South side |
| BC288.0 |
Huey |
AD |
South side |
| BC311.2 |
Summerfield |
AD |
South side |
| |
| Railroad Crossings at Grade |
|---|
| MP |
Location |
Railroad |
Protection |
| |
Chappel |
NS |
CSX Dispatcher |
| |
Vincennes |
CSX |
CSX Dispatcher |
| |
Vincennes |
CSX CE&D |
Remotely Controlled |
| |
Salem |
UP |
CSX Dispatcher |
| |
Odin |
IC |
CSX Dispatcher |
| |
Shattuc |
BN |
CSX Dispatcher |
| BC331.1 |
HN Cabin |
CSX/A&S |
Remotely Controlled |
| BC334.1 |
Willows |
TRRA/NS |
Remotely Controlled |
| BC335.5 |
K Tower |
GWWR |
98-F |
|
