Nashville Division
CE&D Subdivision
(Danville, IL to Evansville, IN)
RadRef listing
|
CE&D Subdivision-CP

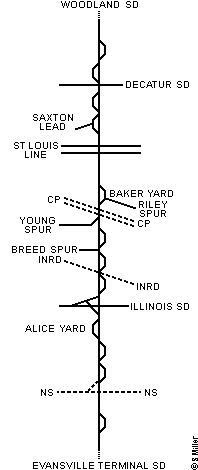

Station List and Diagram
This information comes from the 'CSX Transportation Nashville Division Timetable No. 1', effective Sunday, October 1, 2000.
|
|
Radio: SB Dispatcher channel 94, Road channel 84; Toyota AAR049 |
|
146.6 Miles · RB Junction to North Ingle |
| â SOUTH â |
MP |
Station |
Siding |
Notes |
 |
ZA128.9 |
RB Junction |
|
End Woodland SD
Begin CE&D SD |
| ZA137.7 |
Dickason |
16000' |
|
| ZA150.0 |
WRO |
9900' |
Jct Decatur SD |
| ZA161.5 |
Clinton | 11500' |
|
| ZA174.2 |
Dewey |
5000' |
|
| ZA176.6 |
East Haley |
|
Jct St Louis Line SD |
| ZA177.0 |
West Haley |
|
|
| ZA180.6 |
Baker |
13890' |
|
| ZA182.1 |
Spring Hill |
|
Jct CP(SOO Line) |
| ZA189.8 |
Pimento |
6900' |
|
| ZA202.7 |
Sullivan |
9390' |
|
| ZA218.9 |
Oaktown |
9335' |
|
| ZA234.6 |
Vincennes |
|
Jct Illinois SD |
| ZA236.5 |
Alice |
11700' |
|
| ZA245.3 |
Decker |
9000' |
|
| ZA258.0 |
Gibson |
5280' |
|
| ZA260.1 |
Princeton |
|
Jct NS |
| ZA265.3 |
King |
10432' |
|
| ZA275.5 |
North Ingle |
|
End CE&D SD
Begin Evansville Terminal SD |
| Authority for Movement |
|---|
| Between Location/Mile Post |
Rules |
| ZA128.9 and ZA176.4 |
265-272 |
| ZA176.4 and ZA176.5 |
255-259 |
| ZA176.5 and ZA275.5 |
265-272 |
| ZF4.8 and ZF5.1 Spring Hill Yard Limits |
93 |
| ZF5.1 and ZF12.1 Riley Spur |
120-132 |
| Saxton Lead |
S-146 |
| Farmersburg Mine Spur |
105 |
| Note: Rules 265-272 are in effect on Pimento and Alice sidings. |
| |
DTC Block Limits
Riley Spur |
|---|
| Between Location/Mile Post |
Block Names |
| ZF5.1 and ZF7.2 |
Riley |
| ZF7.2 and ZF12.1 |
Chinook |
| |
| Maximum Authorized Speed |
|---|
| Between Location/Mile Post |
MPH |
| ZA128.9 and ZA275.5 |
60 |
| Riley Spur |
25 |
| Youngs Spur |
10 |
| Farmersburg Mine Spur |
10 |
| |
| Defect Detectors |
|---|
| MP |
Location |
Type |
Indicators |
| ZA134.7 |
Perrysville |
AD |
East side |
| ZA156.3 |
Summit Grove |
AD |
East side |
| ZA184.5 |
Youngstown |
AD |
West side |
| ZA209.2 |
Paxton |
AD |
East side |
| ZA226.8 |
Emison |
AD |
West side |
| ZA241.0 |
Purcell |
ADD |
West side |
| ZA248.6 |
Hazelton |
AD |
West side |
| ZA270.5 |
Haubstadt |
AD |
East side |
| |
| Railroad Crossings at Grade |
|---|
| MP |
Location |
Railroad |
Protection |
| ZA154.5 |
Hillsdale |
CSX |
Remotely Controlled |
| ZA174.7 |
Dewey |
CP |
Automatic |
| ZA176.5 |
Haley |
CSX |
Remotely Controlled |
| ZA181.1 |
Spring Hill Belt |
CP |
Remotely Controlled |
| ZA182.1 |
Spring Hill |
CP |
Remotely Controlled |
| ZA204.4 |
Sullivan |
INRD |
Automatic |
| ZA234.6 |
Vincennes |
CSX |
Remotely Controlled |
| ZA260.0 |
Princeton |
NS |
Automatic |
|
